Generate CloudVision Tags

arista.avd.eos_designs can generate CloudVision Tags that can be applied to interfaces and/or devices. These tags can be used on CloudVision for during Topology view generation, or used in searches/filters to select devices based on tags values.

Available Input Variables

TableYAML

Variable	Type	Required	Default	Value Restrictions	Description
cv_tags_topology_type	String				Device type that CloudVision should use when generating the Topology like “leaf”, “spine”, “core”, “edge” or “member-leaf”. Defaults to the setting under node_type_keys.
generate_cv_tags	Dictionary				Generate CloudVision Tags based on AVD data.
topology_hints	Boolean		False		Enable the generation of CloudVision Topology Tags (hints).
campus_fabric	Boolean		False		PREVIEW: This option is marked as “preview”, meaning the data models or generated configuration can change at any time. Generate CloudVision device and interface Topology Tags for Campus fabric devices. Device is treated as a Campus fabric device if: - The campus variable is assigned, either as native Ansible variable or as part of the <node_type_keys.key> AVD data construct. - The generate_cv_tags.campus_fabric variable is set to True. When campus-related tags are generated for a device, generation of the DC-related tags is automatically disabled for that device. AVD generates the following device tags for the Campus fabric devices based on the provided Campus-related input variables: - Campus - Campus-Pod - Access-Pod - topology_hint_type - Role These tags are later used by CloudVision to render the correct network layout in the Topology view (campusV2 network hierarchy) and Campus dashboards.
interface_tags	List, items: Dictionary				List of interface tags that should be generated.
- name	String	Required, Unique			Tag name to be assigned to generated tags.
data_path	String				Structured config field/key path to be used to find the value for the tag. Dot notation is supported to reference values inside dictionaries. For Example: ‘data_path: channel_group.id’ would set the tag with the value of the channel id of the interface. If there is no channel id, the tag is not created. data_path is ignored if value is set.
value	String				Value to be assigned to the tag.
device_tags	List, items: Dictionary				List of device tags that should be generated.
- name	String	Required			Tag name to be assigned to generated tags.
data_path	String				Structured config field/key path to be used to find the value for the tag. Dot notation is supported to reference values inside dictionaries. For Example: ‘data_path: router_bfd.multihop.interval’ would set the tag with the value of the interval for multihop bfd. If this value is not specified in the structured config, the tag is not created. data_path is ignored if value is set.
value	String				Value to be assigned to the tag.
custom_node_type_keys	List, items: Dictionary				Define Custom Node Type Keys, to specify the properties of each node type in the fabric. This allows for complete customization of the fabric layout and functionality. custom_node_type_keys should be defined in top level group_var for the fabric. These values will be combined with the defaults; custom node type keys named the same as a default node_type_key will replace the default.
- key	String	Required, Unique
cv_tags_topology_type	String				Device type that CloudVision should use when generating the Topology like “leaf”, “spine”, “core”, “edge” or “member-leaf”.
node_type_keys	List, items: Dictionary				Define Node Type Keys, to specify the properties of each node type in the fabric. This allows for complete customization of the fabric layout and functionality. node_type_keys should be defined in top level group_var for the fabric. The default values will be overridden if this key is defined. If you need to change all the existing node_type_keys, it is recommended to copy the defaults and modify them. If you need to add custom node_type_keys, create them under custom_node_type_keys - if named identically to default node_type_keys entries, custom entries will replace the equivalent default entry.
- key	String	Required, Unique
cv_tags_topology_type	String				Device type that CloudVision should use when generating the Topology like “leaf”, “spine”, “core”, “edge” or “member-leaf”.

# Device type that CloudVision should use when generating the Topology like "leaf", "spine", "core", "edge" or "member-leaf". Defaults to the setting under node_type_keys.
cv_tags_topology_type: <str>

# Generate CloudVision Tags based on AVD data.
generate_cv_tags:

  # Enable the generation of CloudVision Topology Tags (hints).
  topology_hints: <bool; default=False>

  # PREVIEW: This option is marked as "preview", meaning the data models or generated configuration can change at any time.
  # Generate CloudVision device and interface Topology Tags for Campus fabric devices.
  # Device is treated as a Campus fabric device if:
  #   - The `campus` variable is assigned, either as native Ansible variable or as part of the `<node_type_keys.key>` AVD data construct.
  #   - The `generate_cv_tags.campus_fabric` variable is set to `True`.
  # When campus-related tags are generated for a device, generation of the DC-related tags is automatically disabled for that device.
  # AVD generates the following device tags for the Campus fabric devices based on the provided Campus-related input variables:
  #   - `Campus`
  #   - `Campus-Pod`
  #   - `Access-Pod`
  #   - `topology_hint_type`
  #   - `Role`
  # These tags are later used by CloudVision to render the correct network layout in the Topology view (`campusV2` network hierarchy) and Campus dashboards.
  campus_fabric: <bool; default=False>

  # List of interface tags that should be generated.
  interface_tags:

      # Tag name to be assigned to generated tags.
    - name: <str; required; unique>

      # Structured config field/key path to be used to find the value for the tag. Dot notation is supported to reference values inside dictionaries.
      # For Example: 'data_path: channel_group.id' would set the tag with the value of the channel id of the interface. If there is no channel id, the tag is not created.
      # `data_path` is ignored if `value` is set.
      data_path: <str>

      # Value to be assigned to the tag.
      value: <str>

  # List of device tags that should be generated.
  device_tags:

      # Tag name to be assigned to generated tags.
    - name: <str; required>

      # Structured config field/key path to be used to find the value for the tag. Dot notation is supported to reference values inside dictionaries.
      # For Example: 'data_path: router_bfd.multihop.interval' would set the tag with the value of the interval for multihop bfd. If this value is not specified in the structured config, the tag is not created.
      # `data_path` is ignored if `value` is set.
      data_path: <str>

      # Value to be assigned to the tag.
      value: <str>

# Define Custom Node Type Keys, to specify the properties of each node type in the fabric.
# This allows for complete customization of the fabric layout and functionality.
# `custom_node_type_keys` should be defined in top level group_var for the fabric.
# These values will be combined with the defaults; custom node type keys named the same as a
# default node_type_key will replace the default.
custom_node_type_keys:
  - key: <str; required; unique>

    # Device type that CloudVision should use when generating the Topology like "leaf", "spine", "core", "edge" or "member-leaf".
    cv_tags_topology_type: <str>

# Define Node Type Keys, to specify the properties of each node type in the fabric.
# This allows for complete customization of the fabric layout and functionality.
# `node_type_keys` should be defined in top level group_var for the fabric.
#
# The default values will be overridden if this key is defined.
# If you need to change all the existing `node_type_keys`, it is recommended to copy the defaults and modify them.
# If you need to add custom `node_type_keys`, create them under `custom_node_type_keys` - if named identically to default `node_type_keys` entries,
# custom entries will replace the equivalent default entry.
node_type_keys:
  - key: <str; required; unique>

    # Device type that CloudVision should use when generating the Topology like "leaf", "spine", "core", "edge" or "member-leaf".
    cv_tags_topology_type: <str>

CloudVision Topology Tags

arista.avd.eos_designs can generate CloudVision Tags that assist CloudVision with rendering the Topology correctly. It will attempt to generate what are called ‘hints’ for the following fields. These are picked up from the fabric variables if they are defined.

To enable generation of Topology Tags:

generate_cv_tags:
  topology_hints: true

Hint Tag Name	Description	Source of information
topology_hint_type	Indicates whether the node is a leaf, spine, core device etc.	cv_tags_topology_type if set, else node_type_keys.[].cv_tags_topology_type.
topology_hint_fabric	The overall fabric that the devices pertains to. Useful for multi-fabric deployments.	fabric_name
topology_hint_datacenter	The datacenter to which the devices belongs. Helpful for multi-dc deployments.	dc_name
topology_hint_pod	The pod to which the devices belongs.	pod_name
topology_hint_rack	The physical rack in which the device is located.	rack defined on node or node_group

PREVIEW: CloudVision Tags for Campus deployments

Warning

The generation of CloudVision Tags for Campus deployments in the eos_designs role is in preview mode.

Everything is subject to change, is not supported and may not be complete.

If you have any questions, please leverage the GitHub discussions board

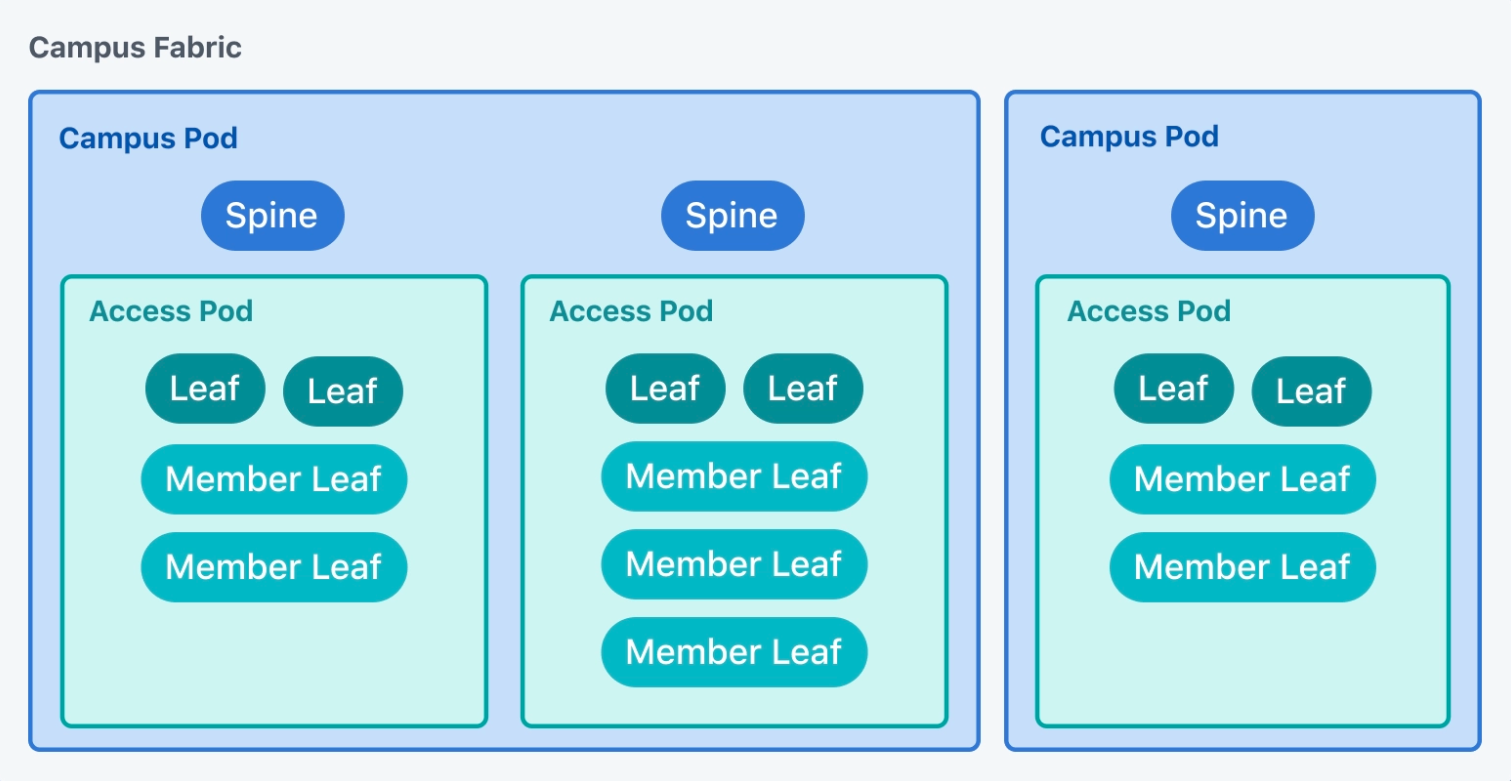

arista.avd.eos_designs can generate CloudVision Tags that assist CloudVision with rendering the Campus Topologies (supported on CloudVision as a Service (CVaaS) or “on-prem” CloudVision 2024.3.0 or later). This specific use case is required to support Hybrid workflow of managing Campus fabrics with both AVD and CloudVision Studios where:

• AVD is leveraged to build the fabric, deploy network services and infrastructure-related endpoints (firewalls, routers, access points, etc.).
• Access Interface Configuration Studio (including it’s Quick Actions sub-feature) is leveraged for day-2 operations to configure port profiles and ports using CloudVision UI.

Both generate_cv_tags.topology_hints an generate_cv_tags.campus_fabric must be set to true to globally enable generation of the Campus Topology tags:

generate_cv_tags:
  topology_hints: true
  campus_fabric: true

Once the generation of Campus Topology tags is globally enabled, assign the following variables - either as native Ansible variables or as part of the <node_type_keys.key> or node_type_keys AVD data constructs (the latter only applicable to the cv_tags_topology_type variable) - to all targeted Campus devices:

• campus
• campus_pod
• campus_access_pod (should not be assigned to Spines)
• cv_tags_topology_type (valid values for Campus deployments: spine, leaf or member-leaf)

Note

Please note that generating Campus-related tags for a specific device disables the generation of DC-related tags for that device.

Example (only relevant configuration is shown):

# Spine Switches
l3spine:
  defaults:
    campus: AVD_CAMPUS
    campus_pod: BUILDING_A

# IDF - Leaf Switches
l2leaf:
  defaults:
    campus: AVD_CAMPUS
    campus_pod: BUILDING_A
  node_groups:
    - group: IDF1
      campus_access_pod: IDF1
      nodes:
        - name: LEAF1A
        - name: LEAF1B
    - group: IDF3_AGG
      nodes:
        - name: LEAF3A
          campus_access_pod: IDF3
        - name: LEAF3B
          campus_access_pod: IDF3
    - group: IDF3_3C
      campus_access_pod: IDF3
      cv_tags_topology_type: "member-leaf"

Note that for standard Arista Universal Cloud Network designs (L3LS, L2LS and L2 Only) it is not mandatory to explicitly specify cv_tags_topology_type value for Campus Spine and Campus Leaf devices, as correct Campus-related cv_tags_topology_type values will be derived from the default values of the mapped node_type_keys:

Node Type Key	Default cv_tags_topology_type
spine	spine
l3spine	spine
leaf	leaf
l2leaf	leaf
l3leaf	leaf

cv_tags_topology_type must be explicitly set for all Campus Member-Leaf devices.

Providing these input variables will lead to the automatic generation of the following Campus-related CloudVision Tags:

Campus Tag Name	Tag type	Description	Source of information
topology_hint_network_type	Device	Identifies associated CloudVision Topology hierarchy type.	Always set to campusV2.
topology_hint_type	Device	Identifies role of the device in CloudVision Campus Topology.	<node_type_keys.key>.nodes.[].cv_tags_topology_type, else <node_type_keys.key>.node_groups.[].nodes.[].cv_tags_topology_type, else <node_type_keys.key>.node_groups.[].cv_tags_topology_type, else <node_type_keys.key>.defaults.cv_tags_topology_type, else cv_tags_topology_type, else custom_node_type_keys.[].cv_tags_topology_type, else node_type_keys.[].cv_tags_topology_type.
Role	Device	Identifies role of the device in CloudVision Campus Topology. Used in CV Dashboards.	<node_type_keys.key>.nodes.[].cv_tags_topology_type, else <node_type_keys.key>.node_groups.[].nodes.[].cv_tags_topology_type, else <node_type_keys.key>.node_groups.[].cv_tags_topology_type, else <node_type_keys.key>.defaults.cv_tags_topology_type, else cv_tags_topology_type, else custom_node_type_keys.[].cv_tags_topology_type, else node_type_keys.[].cv_tags_topology_type.
Campus	Device	Identifies Campus fabric.	<node_type_keys.key>.nodes.[].campus, else <node_type_keys.key>.node_groups.[].nodes.[].campus, else <node_type_keys.key>.node_groups.[].campus, else <node_type_keys.key>.defaults.campus, else campus.
Campus-Pod	Device	Identifies Campus pod (spine devices and associated access pods).	<node_type_keys.key>.nodes.[].campus_pod, else <node_type_keys.key>.node_groups.[].nodes.[].campus_pod, else <node_type_keys.key>.node_groups.[].campus_pod, else <node_type_keys.key>.defaults.campus_pod, else campus_pod.
Access-Pod	Device	Identifies Campus access pod (Leaf and Member-Leaf devices).	<node_type_keys.key>.nodes.[].campus_access_pod, else <node_type_keys.key>.node_groups.[].nodes.[].campus_access_pod, else <node_type_keys.key>.node_groups.[].campus_access_pod, else <node_type_keys.key>.defaults.campus_access_pod, else campus_access_pod.
Link-Type	Interface	Identifies system responsible for managing interface (AVD/Studio) and it’s purpose (fabric/edge/endpoint/etc.).	ethernet_interfaces.[].peer_type.

Warning

If cv_deploy is targeting Campus devices that are not yet registered with CloudVision Inventory and Topology studio - cv_deploy will currently register those devices skipping their Model and Interfaces. This will by default not allow Quick Actions feature of the Access Interface Configuration CloudVision Studio to manage such devices until all Network Updates related to these devices are Accepted in CloudVision UI. This limitation will be addressed in AVD once CloudVision 2025.2.1 is released. After this release, automatic registration of new devices by cv_deploy in CloudVision Inventory and Topology studio will automatically include Model and Interfaces.

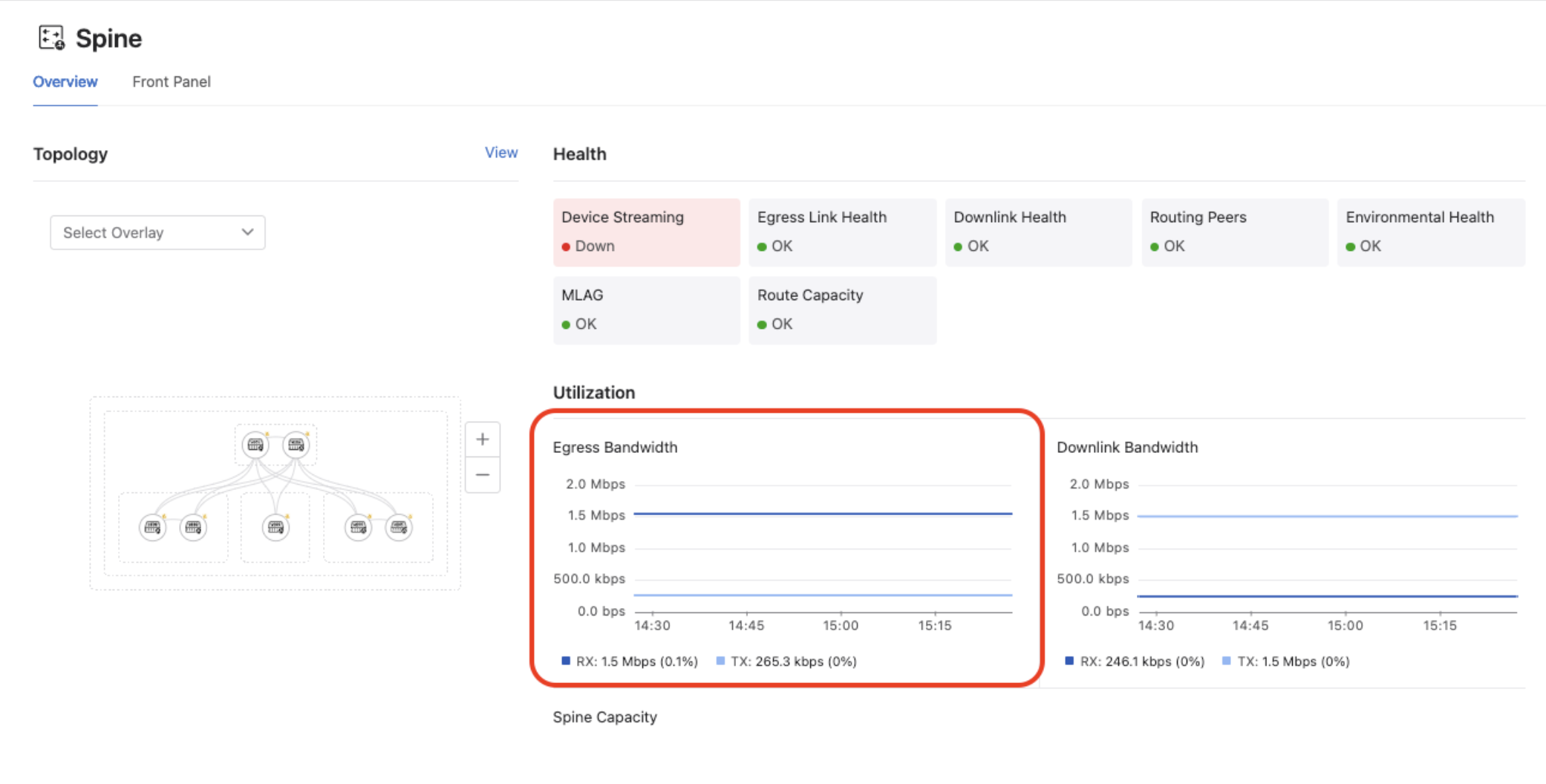

CloudVision Campus Dashboard and Campus egress interfaces

The CloudVision Campus Dashboard provides an overview of the Campus network state including bandwidth utilization of the fabric’s egress interfaces.

The Dashboard identifies a fabric’s egress interfaces by the presence of the Link-Type: Egress interface-level tag. A new key, campus_link_type, has been added to the core_interfaces, l3_edge, network_ports, connected_endpoints, and l3_interfaces (under Network services) data models to provide a flexible way to add new interface-level Link-Type tags with an arbitrary value to the fabric interface(s) of your choice. Set campus_link_type to ["Egress"] for any Fabric interfaces that should be treated as Egress interfaces in the Campus dashboard.

CloudVision Custom Tags

Custom Tags can have either a static or a dynamic value. Dynamic values come from the structured_config generated by eos_designs.

Any value that is not:

• a list
• a dictionary
• a value in a list

can be defined as the value for a tag. This allows for tags to be generated with values that are calculated for that device. Refer to the example below.

For interfaces, only the structured_config for the interface itself is considered.

Tip

Generate the structured_config first to get a better idea of which keys are available.

Warning

• Tag names cannot have the name of any existing system tags on CloudVision. System tags cannot be amended with this approach.
• If the key specified in data_path is not found, the tag is not generated. This avoids having a lot of empty tags.
• Custom structured configuration will not be considered during generation of tags. Only configuration generated by eos_designs itself.

To generate custom Tags with a static value:

generate_cv_tags:
  device_tags:
    - name: mytag
      value: myvalue
  interface_tags:
    - name: myinterfacetag
      value: myinterfacevalue

To generate custom Tags with a dynamic value:

generate_cv_tags:
  device_tags:
    - name: mydynamictag
      data_path: router_bgp.as
  interface_tags:
    - name: myinterfacetag
      data_path: peer_type
